Jr Windspill Street Pole Banner Brackets

Size (Width of Banner): 18"
Style: Adjustable Bracket kit

Description

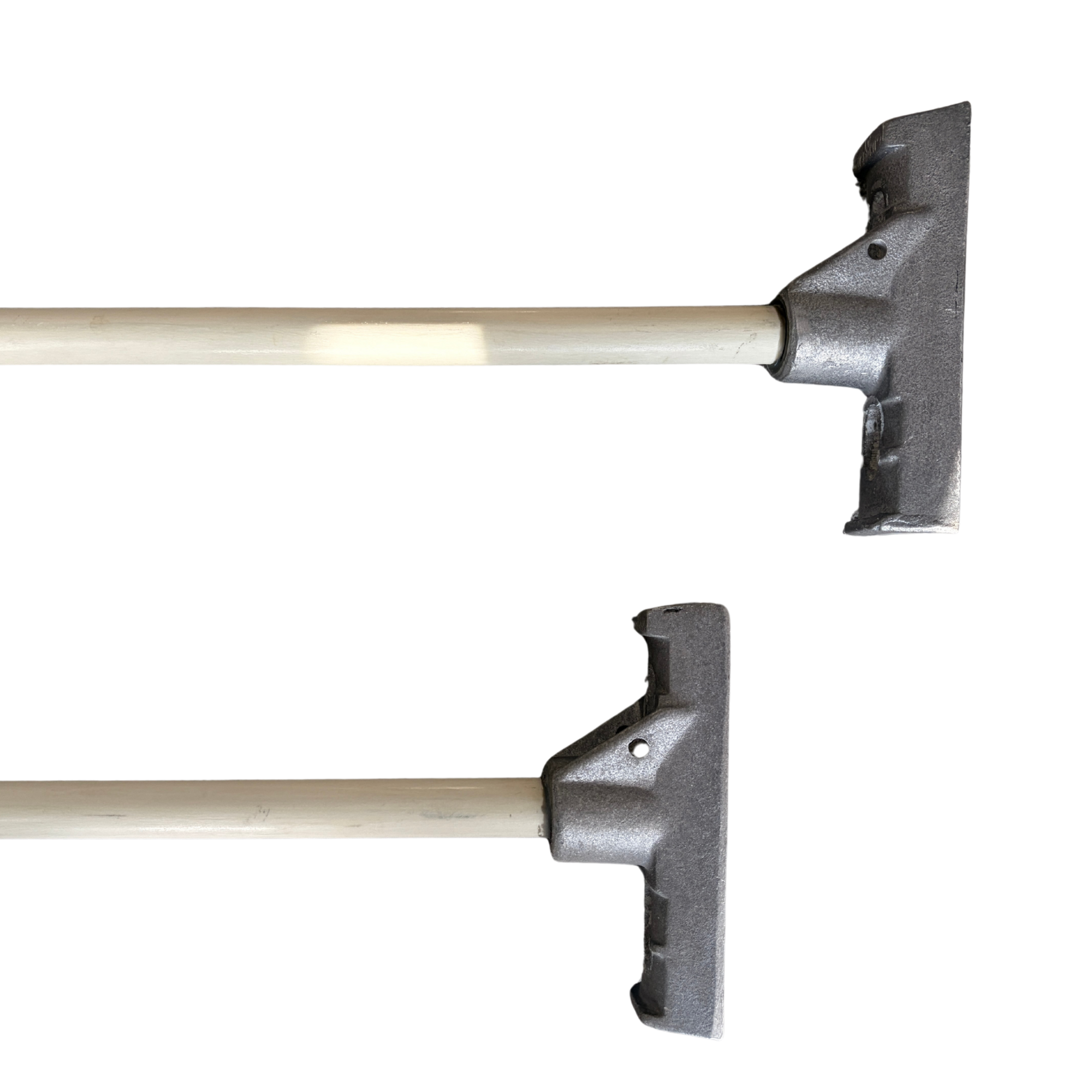

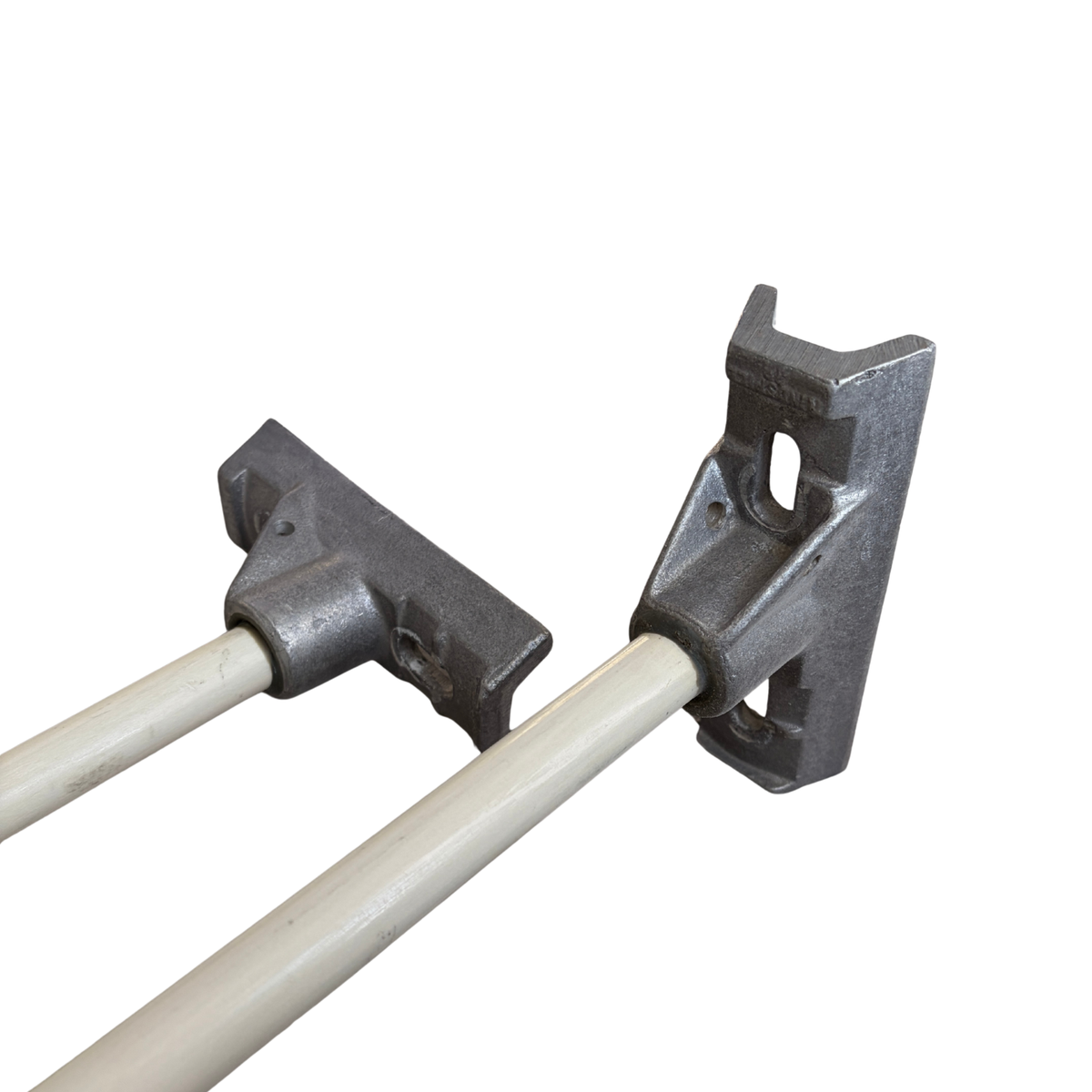

The Jr Windspill Banner bracket is a great product for hanging single or double street pole banners. With tens of thousands of installations across the nation, we at The Street Pole Banner Company have landed on the best bang for your buck street pole banner bracket. With a strong cast aluminium base and epoxied 3/4" fiberglass arm, these lamp post banner brackets can stand the test of time (it's been 20+ years since we've installed some of these and they're still going strong)

The Jr Windspill Street Pole Banner Bracket come in both a fixed and adjustable configuration and in 18", 24", 30" and 36" widths. Each bracket rod is made 1" larger than the size in order to accommodate variances in banner production.

 1 kit= 2 arms (1 kit can hang 1 banner)

Fixed Versus Adjustable Street Pole Banner Brackets

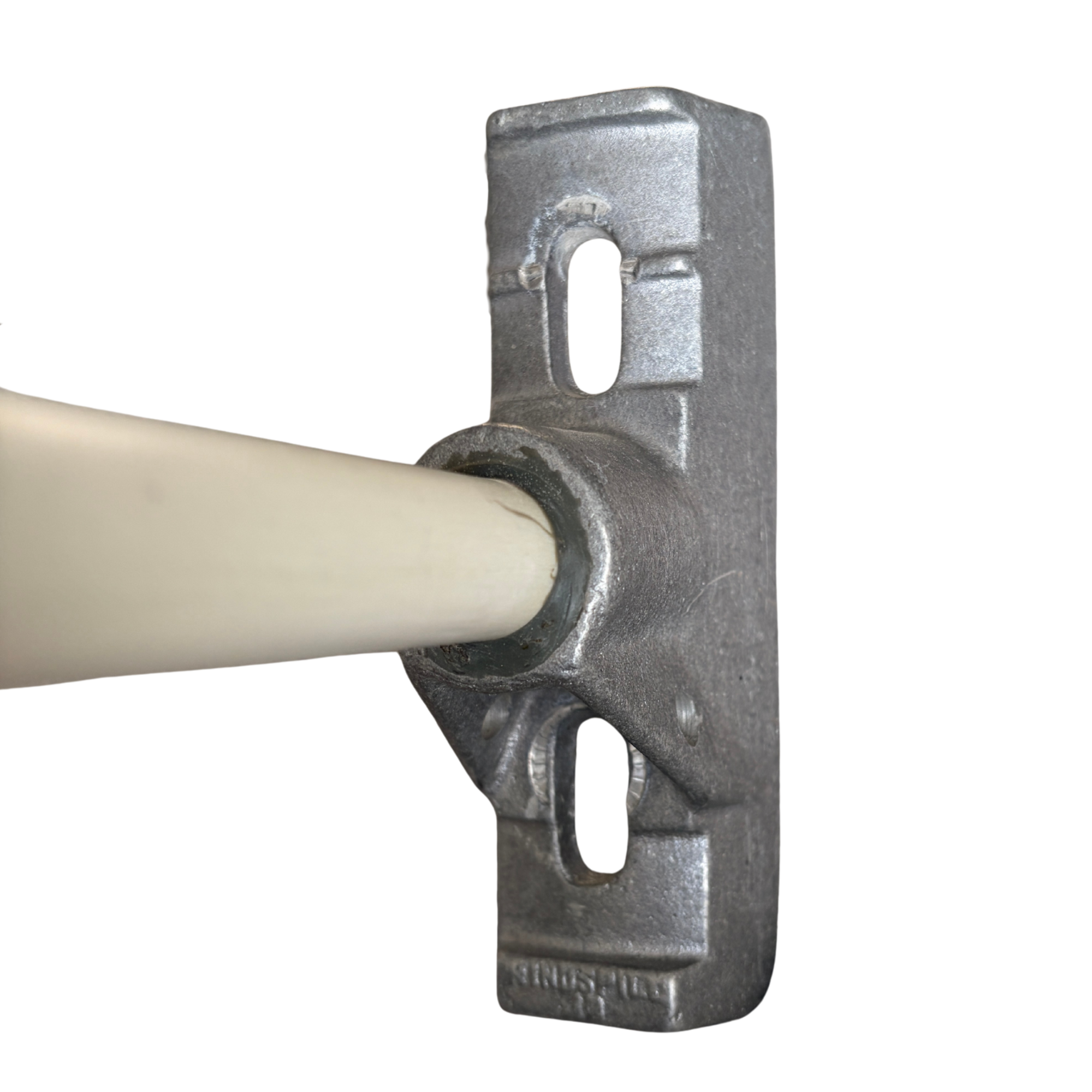

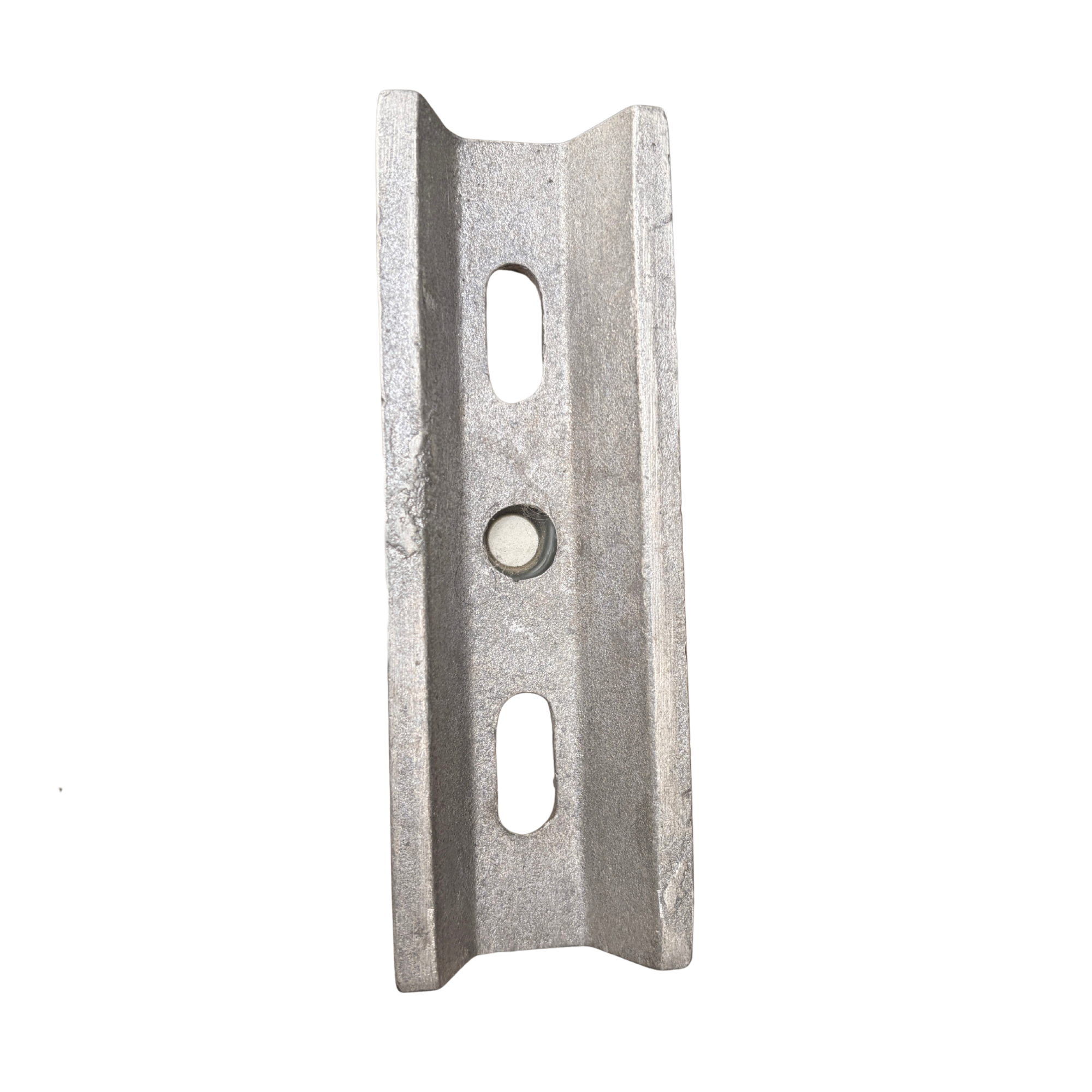

The difference between a fixed and adjustable banner bracket is, as the names suggest, one can adjust to accommodate variances in banner heights and the other cannot. See our article here on detailed difference between the two types of street pole banner brackets. The adjustable banner bracket comes with a "back plate" casting that always stays banded to lamp post. The arm attaches onto the base plate with the help of two self locking bolts. The arm allows for 1" of travel up or down to accommodate banner size variances. The fixed street pole banner bracket is just the arm portion (no back plate or nuts are included)

Jr Windspill Adjustable Street Pole Banner Bracket kit

The Adjustable Jr Windspill Banner Bracket kit comes with: 2x banner arms with pre-attached casting, 2x back plate castings, 4x 1" long 3/8" diameter self locking nuts.



Jr Windspill Fixed Street Pole Banner Bracket kit



The Fixed Jr Windspill Banner Bracket kit comes with: 2x banner arms with pre-attached casting

Features of the Jr Windspill Street Pole Banner Bracket System

  • Heavy Duty Construction: Cast of aircraft quality 356 aluminum alloy, with T51 heat treatment.
  • Rust-proof components.
  • The 1 1/2 “ width and the 6” length of the Jr WIndspill base unit provides lateral and vertical stability for banners (will fit well on flat surfaces like walls or square poles, octagonal poles, round poles)
  • Fits round, square, octagonal and tapered poles over 1 1/2 “ in diameter. It can be lag-bolted to wooden posts or flat surfaces

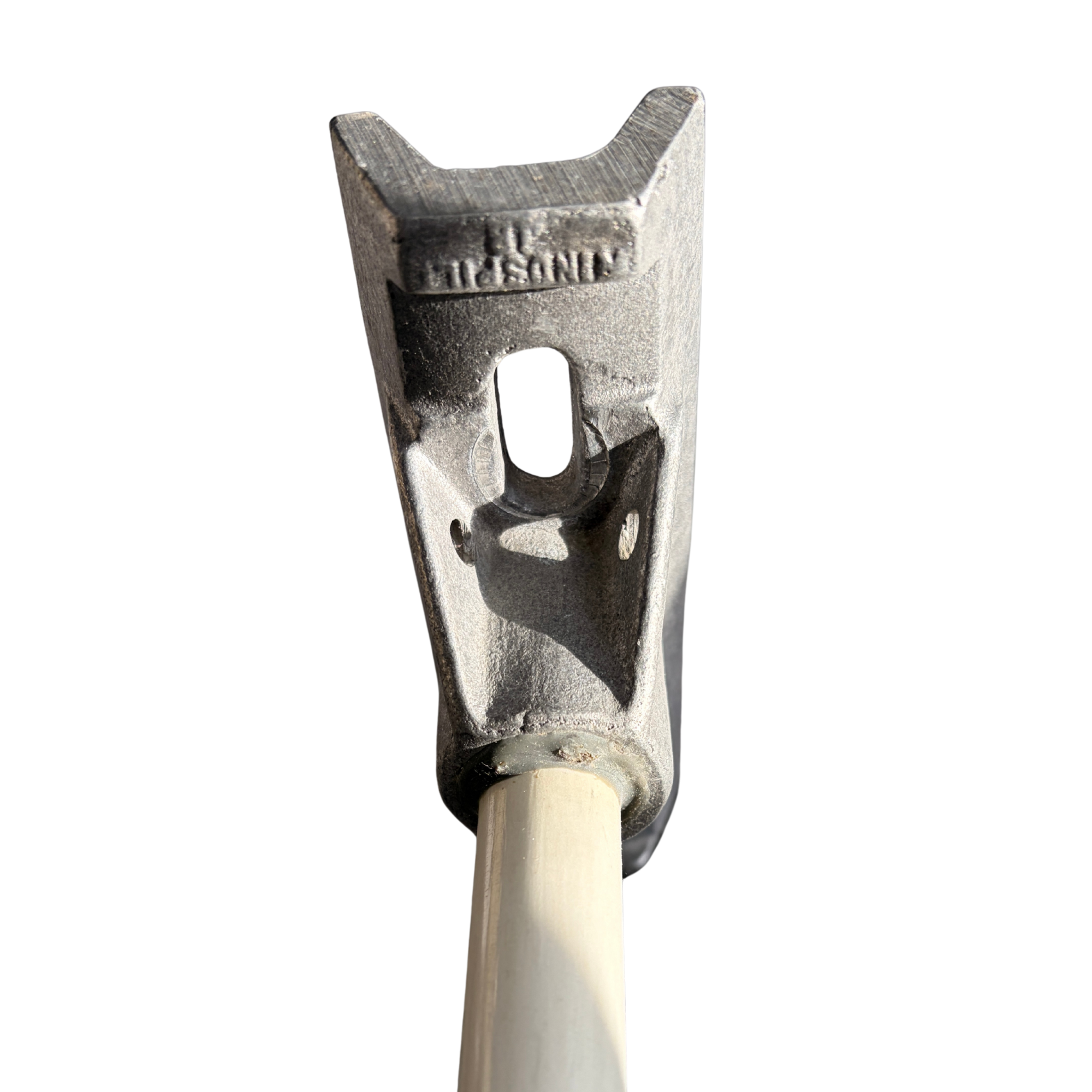

  • The top and bottom arm are the exact same (no risk of confusion). Just install the brackets following the correct arrows on the casting that indicate where the banner is to be.
  • Two 13/16” diameter fiberglass rods are epoxied into the arm castings providing flexibility while maintaining strength.
  • The fiberglass arms are canted 2 degrees. This keeps the banner tight, yet absorbs wind load to reduce stress on the banner and the light pole - up to 25%.
  • Easily installed with two stainless steel straps  (3/4” or 1.2" wide) or lag bolts
  • Convenient banner zip-tie tie off on the banner arm casting
  • No moving parts to wear or fail: This means all safety features are built in and no additional safety or lynch-pins are required.
Installation

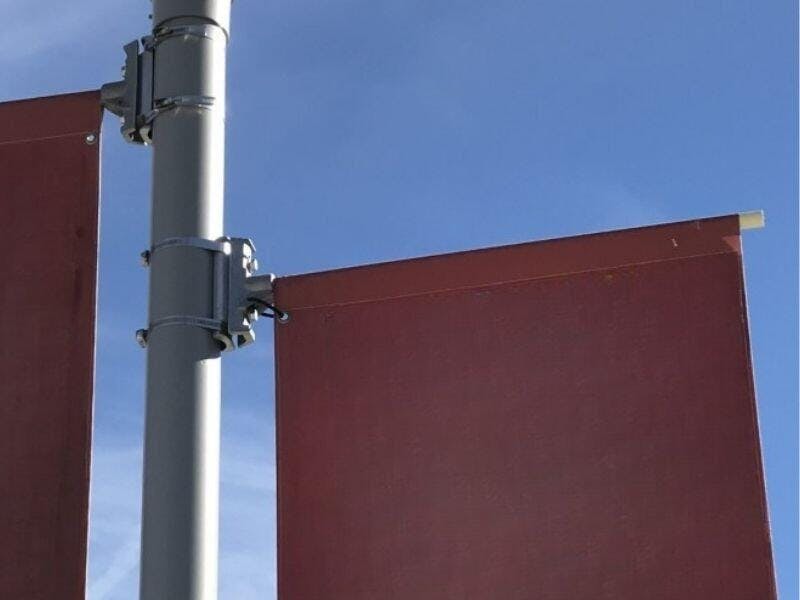

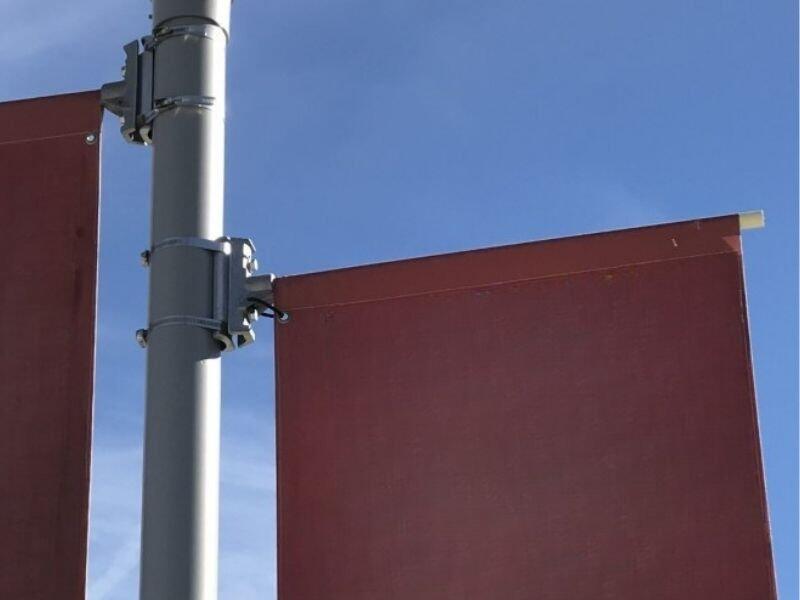

Install the Jr Windspill Banner Brackets with stainless steel banding. A full guide for installation can be found here

Warranty

The Jr Windspill Lamp Pole Banner Bracket comes with a 10 year manufacturer's warranty.

There are no moving components to wear and all materials do not oxidize (will not rust).

It is important to install your banner properly with the correct banding.

Windspeed Ratings

All Jr Windspill Street Pole Banner Brackets are engineered to withstand 80 mph wind speeds. The cast aluminium bases are cast of aircraft quality 356 aluminium with a T51 heat treatment
